Overview:

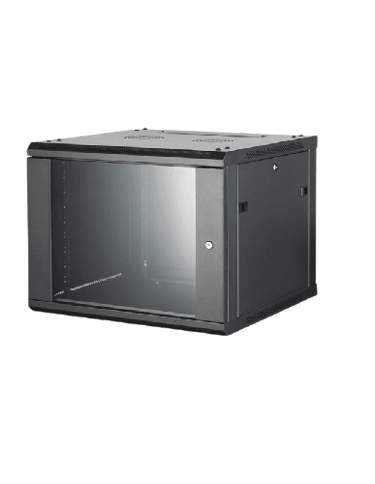

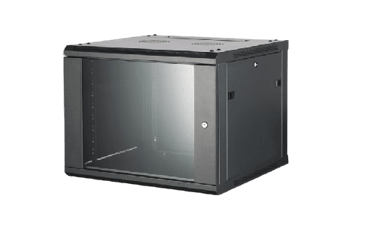

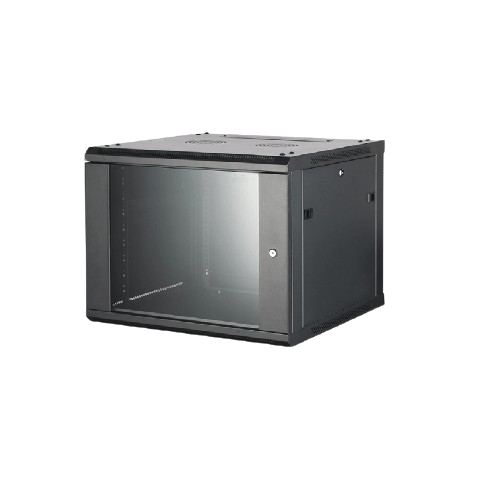

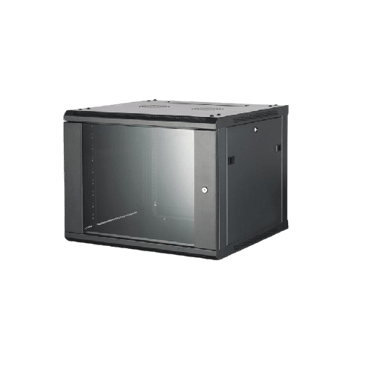

The Wall Mounted Data Cabinets and racks ideal for cable and small LAN installations, and come in a range of heights and depths. Our wall mount racks are also available with fixed side panels and a glass front door and feature adjustable 19″ profiles. These racks are also used as a way to ensure that cords, wires, and other external items are not damaged through tangling or other forms of mistreatment.

Data network wall-mounted cabinets are essential, compact enclosures specifically engineered to house and organize critical networking equipment. These versatile units efficiently accommodate components such as patch panels, network switches, routers, and integrated cable management systems, ensuring optimal functionality and accessibility. Their design prioritizes providing a robustly secure, highly organized, and significantly space-saving infrastructure solution, making them ideally suited for small to medium-scale IT deployments.

Application:

Compact size cabinets are suitable for small offices and Networks. We offer cabinets with enough room to access equipment through the front door and the rear side. Some cabinets in this line come equipped with removable side panels with locks. In our product portfolio, you will also find racks that can be installed directly into the wall, which makes them a very aesthetic solution for small networks.

• 19-Inch standard rack mount design

• Excellent environmental properties

• Multiple cable entry at top and bottom

• Network design flexibility

• Thickness Mounting Profile 1.5mm; side panel 1.0 mm, others 1.2mm

• Fan Mount 1 or 2 Fan Holes

• Section Single section or Dual section

• Toughened glass front door, or vented metal door

• Accessories Fan, PDU and Shelf

• Removable Side Panels with Locking

• Color Black (RAL9004), Gray (RAL7035), etc.

• 100% component test to guarantee the quality

• Wall Mounted cabinet 19” Stranded

• Available Size (600x450) and (600X600) mm

• Available Height 6U, 9U, 12U, etc.

• Excellent environmental properties

• Material SPCC Cold rolled steel with powder coat finishing

• IP Rating IP20

• Temperature Performance[°C]: -30 to +60

Mechanical Performance Test compliance:

• ANSI/EIA RS-310-D

• ISO/IEC 22237-1:2021

• IEC60297-2

• EN 50173 and EN 50288-4-1

• DIN41494 PART1, DIN41494 PART7

• ISO, UL, CE, RoHS

Operation Performance:

Optional Features:
