Overview:

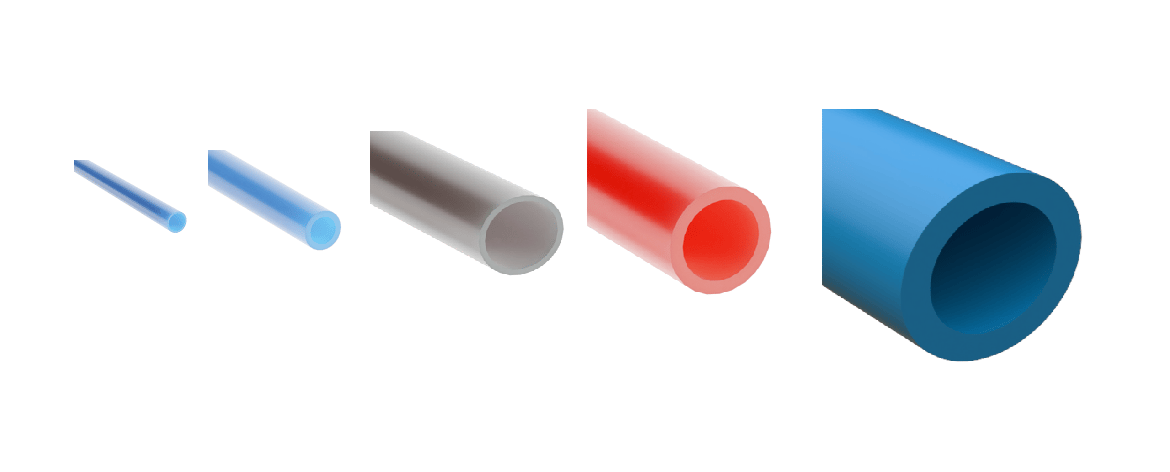

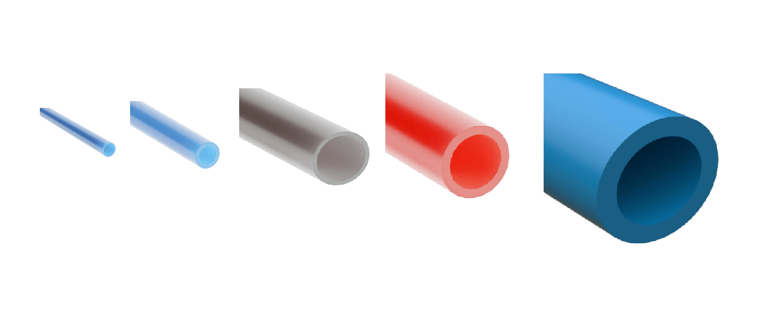

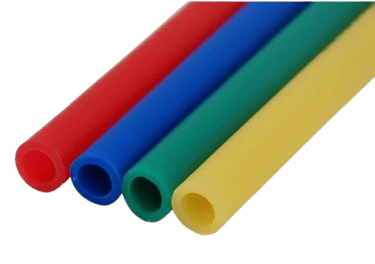

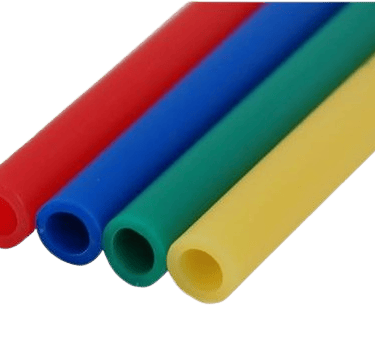

Primary Microduct assemblies consist of one tube with a smooth or ribbed inner surface that enables an air blown installation of micro cables. It provides excellent protection from the physical environment withstanding significant amount of pressure by pulling, and it is easy to branch off for network expansion.

Primary Microduct is designed for internal installation by having thin inner tube. It has advantage for easy and fast termination with thin sheath. The thickness of the tube allows tubes to be used internal installation solution. This item is suitable for any construction sites such as buildings and internal installation. This product is usually recommended to the site which requires fast and easy sheath cutting during fiber branch off.

Application:

The Primary Microduct tight protected duct assemblies consist of a one tube microducts with an inner low friction, antistatic surface that enables installation of air blown fibers cables. The duct assemblies are HDPE sheath depending on configuration. The design makes the ducts suitable for internal installation.

• Enhanced Silicone Liner for low friction

• Various configurations with different size between 5/3.5mm and 22/16mm

• Wide range of number of inner tubes from 1 way

• Ribbed & Smooth Type

• Material HDPE Inner tube and Outer sheath

• Low friction inner surface for maximum installation lengths

• Excellent environmental properties

• silicone coated inner tube

• Material HDPE Inner tube and Outer sheath

• Maximum Air Pressure (Blowing) 15bar

• Temperature Performance[°C]: -40 to +60

Mechanical Performance Test compliance:

• Tensile Performance: IEC 60794-1-21 Method E1

• Bend: IEC 60794-1-21 Method E11

• Kink: IEC 60794-1-21 Method E1

• Impact: IEC 60794-1-21 Method E4

• Crush: IEC 60794-1-21 Method E3

• Inner Clearance: IEC 60794-5-20 Ann. E

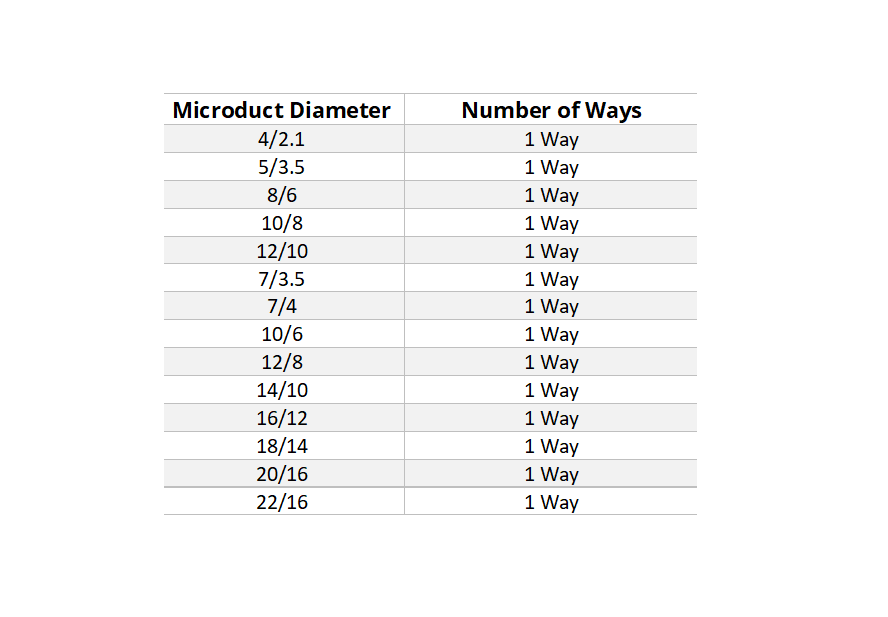

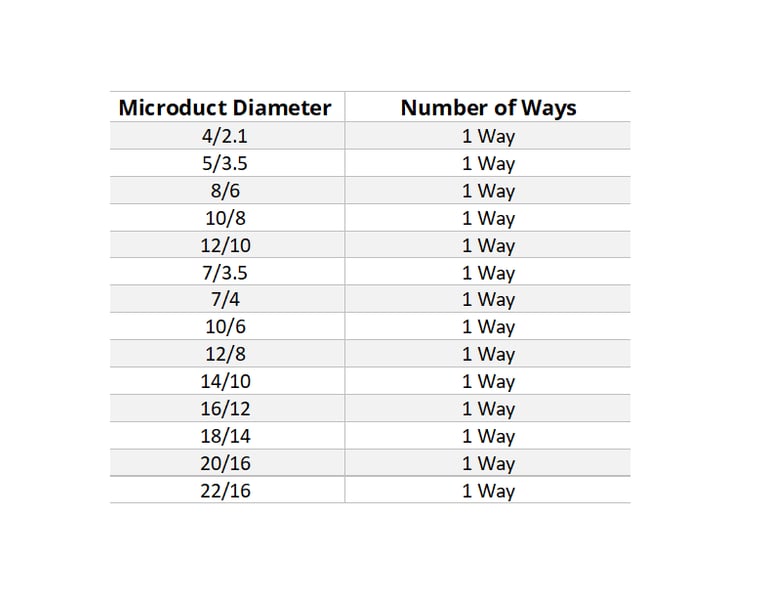

Microduct Configuration:

Operation Performance:

Optional Features:
