Overview:

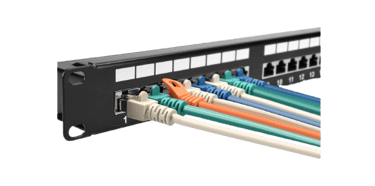

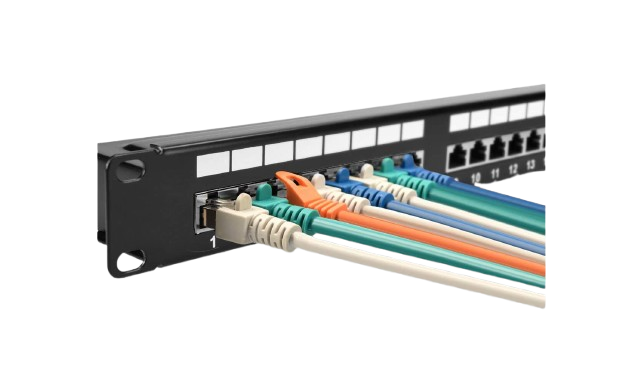

Patch panels bundle multiple network ports together to connect incoming and outgoing lines including those for local area networks. When patch panels are part of a LAN, they can connect computers to other computers and to outside lines. Those lines, allow LANs to connect to wide area networks or to the Internet. To arrange circuits using a patch panel, you simply plug and unplug the appropriate patch cords. Troubleshooting problems are simplified with patch panels since they provide a single location for all input jacks.

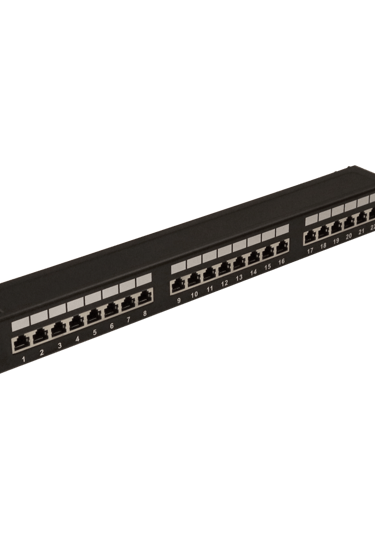

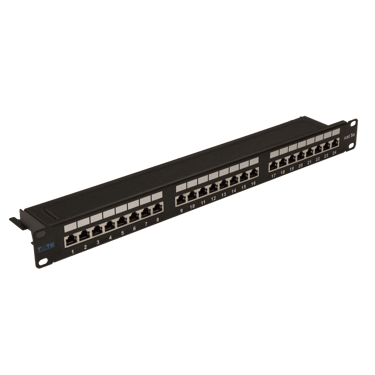

Patch Panel serves as the foundational termination point for Ethernet cabling within a local area network, providing a pivotal interface for network infrastructure. This critical component significantly enhances organization by separating active network equipment from fixed horizontal cabling, simplifying troubleshooting and management. Its inherent design offers substantial flexibility for reconfigurations, additions, and moves, enabling rapid adaptation to evolving network requirements without extensive re-cabling. Moreover, patch panels inherently support scalability, allowing for seamless expansion of network ports as demand grows.

Application:

Blank Patch Panels 1U 24 Port or 2U 48 Ports is support bar and Shutter or non-shutter Keystone Jack Panel With grounding wire 24 cable ties and 4 screws, empty patch panel with shutter is suitable for being installed keystone jacks or couplers. The design of snap-in structure makes you install and unload the module easily. The label and inlaid marks are available for the identification of cabling management. You can write the number or words which is the better way for organizing your patch cords, our standard package is not including the module.

• Port Organization typically available in 12, 24 or 48 ports

• Connector Type RJ45 jacks compatible with Cat 6, Cat 6A, Cat 7, or Cat 8

• Mounting Designed for 19-inch racks or wall-mounted enclosures

• Labeling Ports are numbered and include labeling areas for easy identification

• Prevents cable clutter and simplifies troubleshooting

• Easy to reconfigure connections using patch cords

• Supports network growth without rewiring

• Protects cable terminations from wear and tear

• Color Black or Ivory

• Port Organization typically available in 12, 24 or 48 ports

• Available in UTP, FTP and STP

• Connector Type RJ45 jacks compatible with Cat 6, Cat 6A, Cat 7, or Cat 8

• Excellent environmental properties

• Material Cold‑rolled steel

• Patch Panels are designed to accommodate 12, 24 or 48 keystone connectors

• Temperature Performance[°C]: -30 to +60

Mechanical Performance Test compliance:

• ANSI/TIA/EIA 568-C.2

• ISO/IEC 11801

• ANSI/TIA-1096-A (FCC Part 68)

• EN 50173

• UL, ETL, CE, RoHS

Operation Performance:

Optional Features:
