Overview:

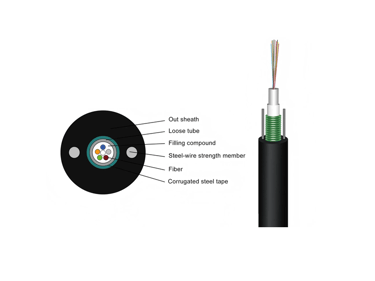

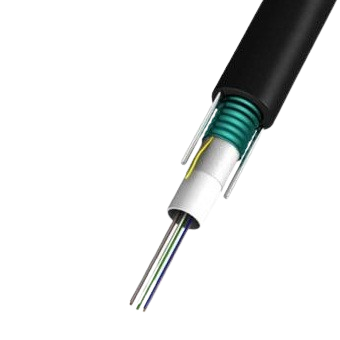

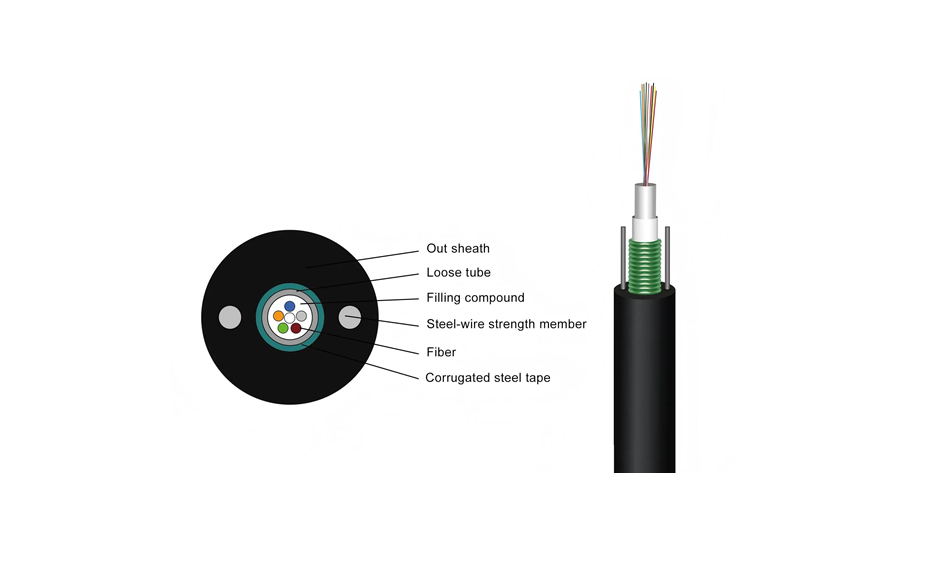

Outdoor fiber optic cables with two parallel steel wires are rugged, high-strength cables designed for long-distance and campus network installations. They combine a central loose tube with steel tape armor and dual steel wire strength members, making them ideal for aerial, duct, and direct-buried applications.

Outdoor Loose Tube Two Wire Cable is commonly known as Universal Loose tube Fiber Optic Cable. It is mostly Installed in riser ducts, cable trunks and under data center floors. It can also be made into a 2 to 12 cores structure with a cross-section Loose tube made of color coating fibers and filled with waterproof compounds. A layer of outer Jacket extruded outside the loose tube with two parallel metal Strength members embedded in the Jacket or black LSZH, UV resistant jacket with ripcord types shaped.

Application:

Outdoor Loose Tube Two Wire Cable bundles assemblies consist of a between 2~12 core, that enables installation of in building wiring applications. The fiber assemblies are bundled with outer sheath is a color coating fiber and filled with waterproof compounds. A layer of outer Jacket extruded outside the loose tube with two parallel metal Strength members embedded in the Jacket layer that is of low friction. This fiber cable is applied in Duct, cable trays and FTTx Access installations.

• Smaller diameter

• Excellent environmental properties

• High strength Single Loose Tube member with 2-wire steel

• Corrugated steel tape surrounds the loose tube for crush resistance

• Perfect cable structure with high fiber density

• Network design flexibility

• The outer sheath is a PE or LSZH jacket

• Flame retardant characteristics meet the requirements of relevant standards

• Fiber bundle for 2~12 core

• Singlemode or Multimode

• Fiber type G.G652D, G.657A1, G.657A2

• Fiber type is Uni-loose tube 2~12 core with 2-wire steel

• Low friction surface for maximum installation lengths

• Excellent environmental properties

• Material outer sheath is PE or LSZH jacket

• Temperature Performance[°C]: -30 to +60

Mechanical Performance Test compliance:

• Tensile Performance: IEC 60794-1-21 Method E1

• Bend: IEC 60794-1-21 Method E11

• Impact: IEC 60794-1-21 Method E4

• Crush: IEC 60794-1-21 Method E3

Operation Performance:

Optional Features:
