Overview:

Armored Single Loose Tube (SLT) fiber optic cables are rugged outdoor cables designed for direct burial, duct, or harsh environments, offering high crush resistance, rodent protection, and water-blocking performance. They are widely used in campus networks where durability and reliability are critical.

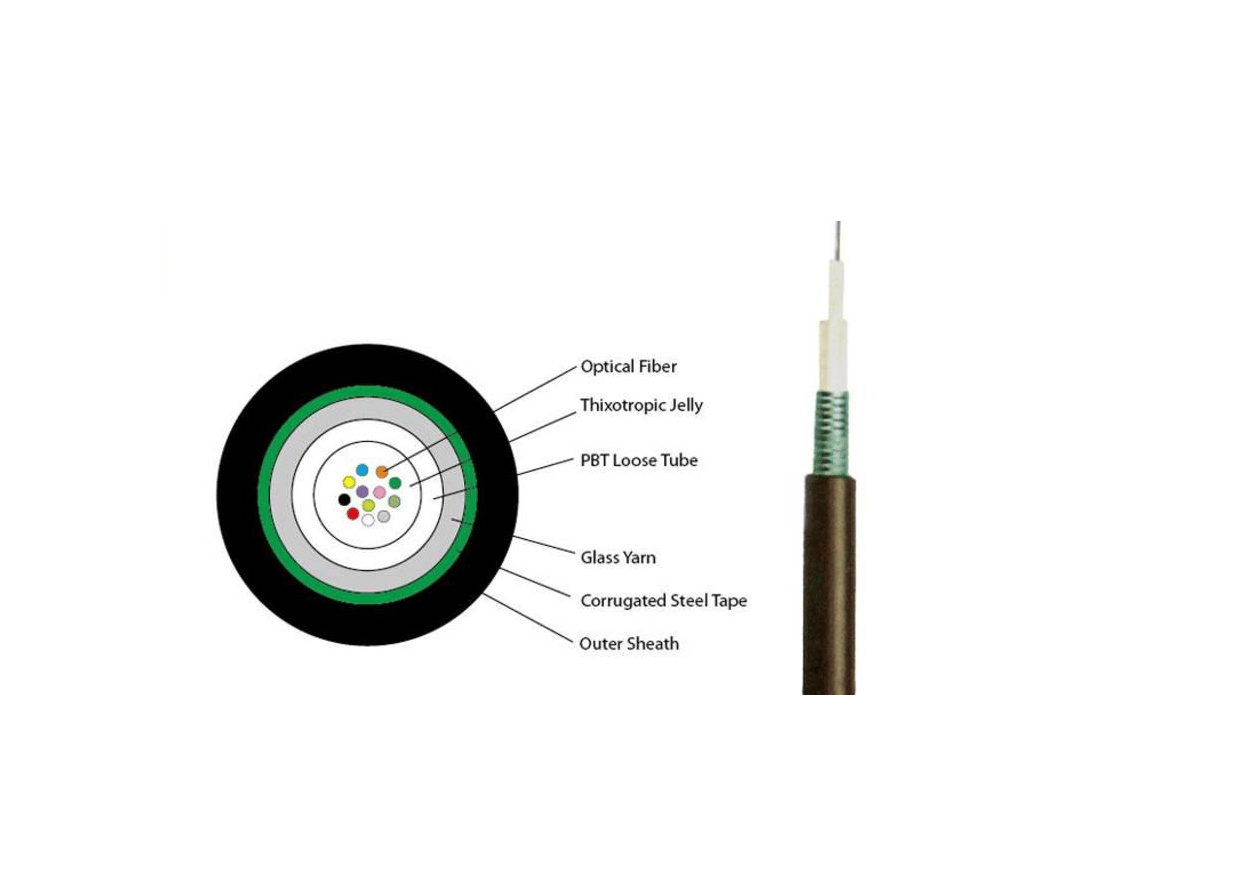

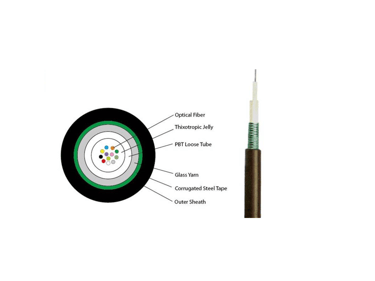

Armored Loose Tube Cable is commonly known as Outdoor Armored Loose tube Fiber Optic Cable. It is mostly Installed in riser ducts and cable trunks. It can also be made into a 2 to 12 cores structure with a cross-section Loose tube made of colored optical fiber without filling waterproof compound. Loose tube is stranded around the strength member which in the central of cable into cable core, a layer of water-blocking tap is longitudinal wrapped around the cable core, after Corrugated steel is longitudinal wrapped, an outer jacket is extruded.

Application:

The outdoor Armored Single Loose Tube Cable bundles for in building cabling systems are dedicated for outdoor network infrastructure. The small diameter is suitable to be used in projects requiring large number of slots and the fiber number between 2~24 core optical fiber cable which can be routed into ducts.

• Smaller diameter

• Excellent environmental properties

• High strength Single Loose Tube member

• Corrugated steel tape surrounds the loose tube for crush resistance

• Perfect cable structure with high fiber density

• Network design flexibility

• The outer sheath is a PE or LSZH jacket

• Flame retardant characteristics meet the requirements of relevant standards

• Fiber bundle for 2~24 core

• Singlemode or Multimode

• Fiber type G.G652D, G.657A1, G.657A2

• Fiber type is Uni-loose tube 2~24 core

• Corrugated Steel Tape Armored

• Low friction surface for maximum installation lengths

• Excellent environmental properties

• Material outer sheath is PE or LSZH jacket

• Temperature Performance[°C]: -30 to +60

Mechanical Performance Test compliance:

• Tensile Performance: IEC 60794-1-21 Method E1

• Bend: IEC 60794-1-21 Method E11

• Impact: IEC 60794-1-21 Method E4

• Crush: IEC 60794-1-21 Method E3

Operation Performance:

Optional Features:
