Overview:

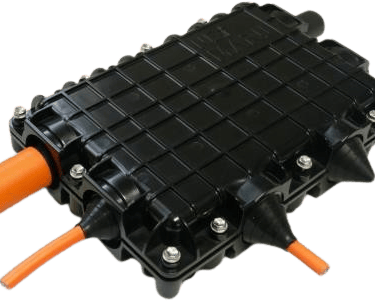

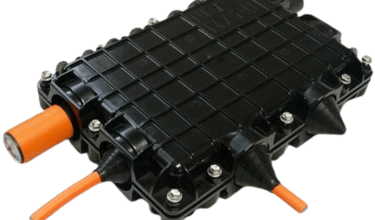

It is designed by modular method to change the length of closure and branch direction. It is possible to assemble or dis-assemble the closure without any special tools. The maintenance of In-line closure can be done without cutting the ducts, and can be completed only by reopening upper modular part. In-line closure is designed to connect several microduct bundles and to branch-off tubes without any interruption of connectivity.

The branch closure is typically used in place of a microduct to protect the connector and the end cap for direct burial. Branch closure is designed to connect several microducts and to branch-off tubes without any interruption of connectivity. Using this closure, the ducts are protected and easy to reopen for maintenance.

Application:

The branch closure is typically used in place of a microduct to protect the connector and the end cap for direct burial. Branch closure is designed to connect several microducts and to branch-off tubes without any interruption of connectivity. Using this closure, the ducts are protected and easy to reopen for maintenance.

• Light weight

• Easy installation

• Easy branching

• Enhanced Silicone Liner for low friction

• Microduct protection at joint/distribution point, can accommodate various types of microduct

• Used from diameter 5/3.5mm to 22/16mm microducts

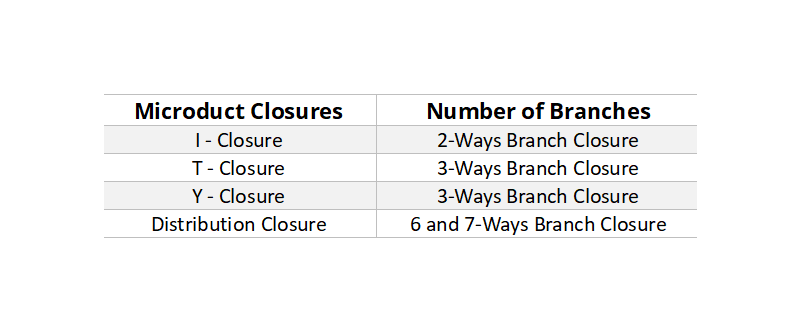

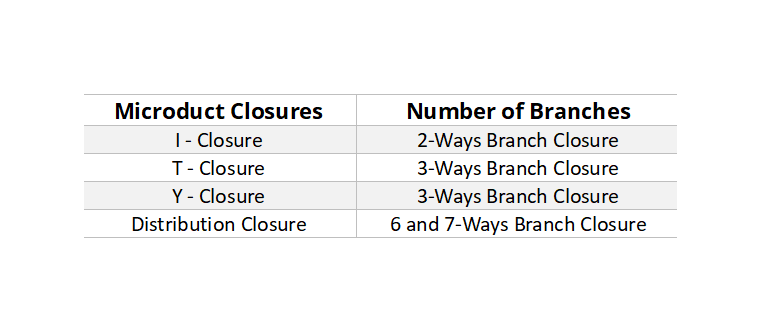

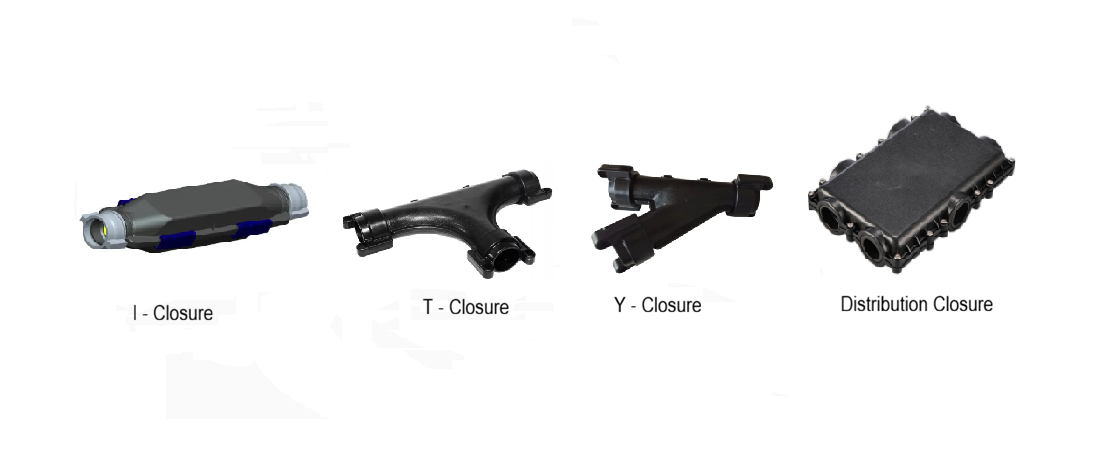

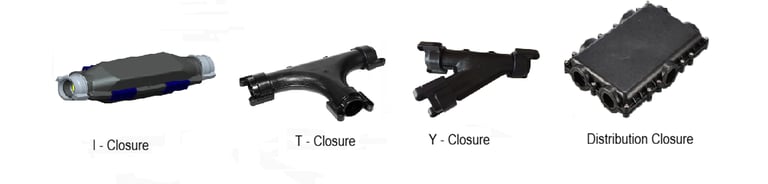

• Branch Closure has different types (2, 3, 6 and 7-way types)

• Material HDPE Outer sheath IP65 rated

• Low friction inner surface for maximum installation lengths

• Excellent environmental properties

• silicone coated inner tube

• Material HDPE Outer sheath IP65 rated

• Maximum Air Pressure (Blowing) 15bar

• Temperature Performance[°C]: -40 to +60

Mechanical Performance Test compliance:

• Tensile Performance: IEC 60794-1-21 Method E1

• Bend: IEC 60794-1-21 Method E11

• Kink: IEC 60794-1-21 Method E1

• Impact: IEC 60794-1-21 Method E4

• Crush: IEC 60794-1-21 Method E3

• Inner Clearance: IEC 60794-5-20 Ann. E

Microduct Configuration:

Operation Performance:

Optional Features:
