Overview:

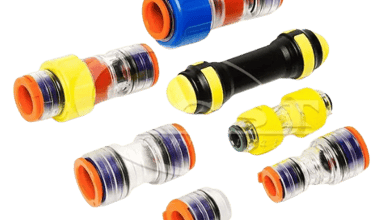

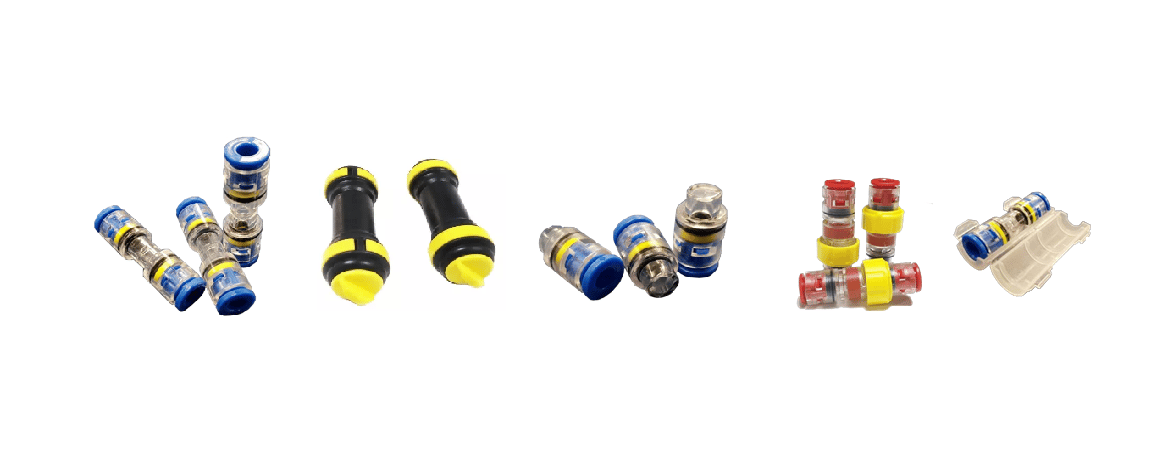

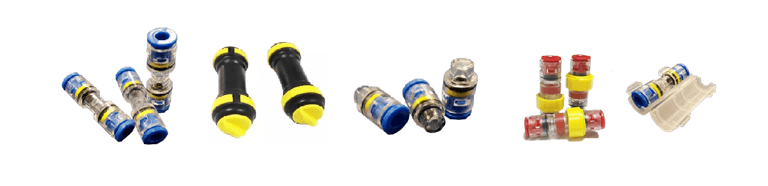

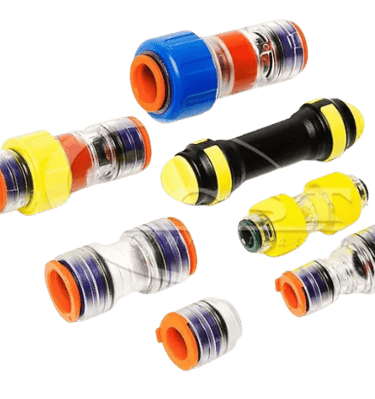

Microduct accessories are essential components in microduct network installations, ensuring secure connections, protection against moisture/dirt, and reliable performance during cable blowing. The main categories include connectors, reducers, end stops/caps, seals, and specialized tools.

Microduct accessories are specialized components used in fiber optic cable installation systems, particularly in microduct networks. These networks rely on small, flexible ducts that house and protect fiber cables, and the accessories ensure secure connections, airtight sealing, and reliable performance during installation and operation.

Application:

Microduct accessories are the enablers of scalable, reliable, and cost-effective fiber optic networks. They provide the essential functions of connectivity, sealing, branching, and protection, making them indispensable in modern telecom infrastructure.

• Used for jointing two micro ducts.

• Straight connector installation is simple and carried out in a few seconds.

• Easy “push-in” installation

• Size (mm): For 3 to 22 mm O.D Microducts

• Material: Clear PC IP65

• Leakage Pressure: 15 bar

• Negative Pressure: 750mm Hg

• Proof Pressure: 25 bar

• Water Immersion test: Pass (Water proof)

• Expected Life time: Minimum 20 years

• Temperature Range: -10 ~60℃

• Low friction inner surface for maximum installation lengths

• Excellent environmental properties

• silicone coated inner tube

• Material: Clear PC IP65

• Maximum Air Pressure (Blowing) 15bar

• Temperature Performance[°C]: -10 to +60

Mechanical Performance Test compliance:

• Tensile Performance: IEC 60794-1-21 Method E1

• Bend: IEC 60794-1-21 Method E11

• Kink: IEC 60794-1-21 Method E1

• Impact: IEC 60794-1-21 Method E4

• Crush: IEC 60794-1-21 Method E3

• Inner Clearance: IEC 60794-5-20 Ann. E

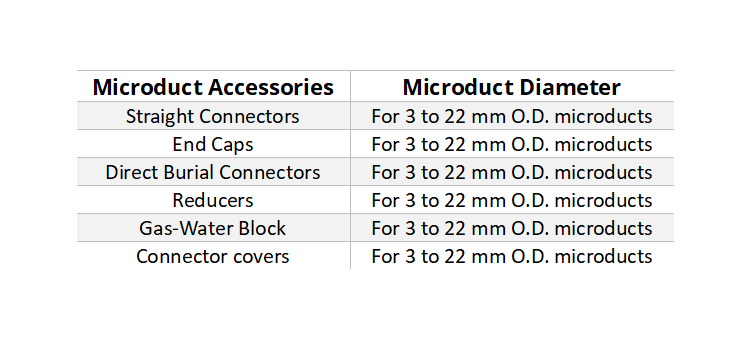

Microduct Configuration:

Operation Performance:

Optional Features:
