Overview:

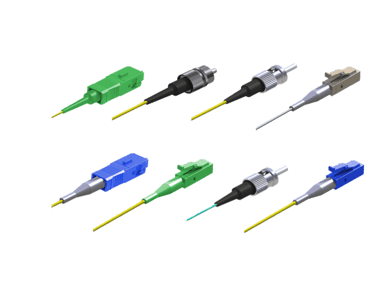

Fiber Optic Pigtails are made from single cables and pre-terminated at one end with fiber optic connectors. Fiber optic connectors on the end of fiber pigtails cables can be of various types, including FC, SC, ST, LC, DIN and MPO etc. The purpose of fiber optic pigtails is to connect fiber optic core to one or more devices or equipment in a fiber optic network. There are two major application areas of fiber optic patch cables which are network station to outlet and fiber optic patch panels or optical cross connect distribution center.

Fiber optic pigtails are short fiber optic cables with a connector on one end and exposed fiber on the other, designed to simplify splicing and termination in fiber optic networks. They are widely used in telecom, data centers, and FTTH deployments.

Application:

Fiber Optic Pigtails are necessary for almost all networks. Their ability to carry massive volumes of data at high speeds makes them ideal for the backbone of most networks. They connect everything from data centers to any device within the network. Fiber Pigtails have become an essential component of enterprise data networks. due to the variety of fiber pigtails installation requirements, a fiber optic pigtail has fiber optic connectors such SC, ST, LC, FC, etc.

• Available in Fixed, Sliding or Swing rack mount

• Rack mount 19” 1U for 24 ports and 2U for 48 ports and up to 144 ports in 4U

• Made of powder coated cold rolled steel material

• Integrated with splice cassette and cable management rods

• Compact structure and perfect fiber management

• Suitable for the fusion splice or mechanical splice

• Fiber connector types of FC, SC, ST and LC etc.

• High reliability and reasonable inner space design

• Customer connectors are available upon request

• Singlemode or Multimode

• Simplex or Duplex adaptors

• Fiber Mode: Singlemode or Multimode

• Connector type: SC, FC, ST, LC etc.

• Polish Interface Type: PC, UPC, APC

• Adapter Capacity: 24 or 48 ports, simplex or duplex adaptors

• Splice trays: 2x12 cores or 2x24 cores Splice trays

• Installation Models: Fixed, Sliding or Swing 19” rack mount

• Material: High-quality powder cold rolled steel material

Mechanical Performance Test compliance:

• Optical Testing: IEC 61300 series

• Generic cabling systems: ISO/IEC 11801

• Temperature Performance[°C]: -30 to +60

Operation Performance:

Optional Features:
