Overview:

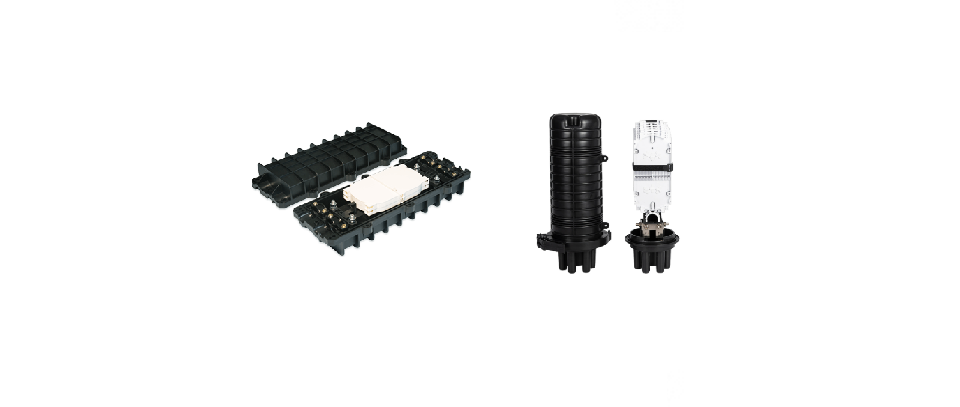

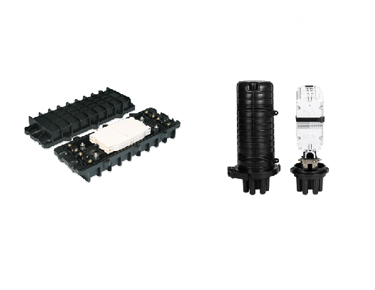

Fiber optic splice closure plays a crucial role in the installation and maintenance of fiber optic networks. It is an essential component that provides protection and organization for fiber optic splices, ensuring the integrity and reliability of the network. There are several types of fiber optic splice closures available, each designed for specific applications and environments. Some common types include dome splice closures, inline splice closures.

Splice Closure also named Fiber optic joint closure, it is used to distribute, splice, and store the outdoor optical cables which enter and exit from the ends of the optical fiber cable joint closure. Horizontal and vertical Fiber optic splice closure is an essential passive component for fiber optic cable management in the fiber-optic network of backbone and access network. The fiber splice closures and the splice trays inside provide strong protection for the spliced fiber joint and fiber cables. Fiber Optic Splice Closure can be installed in aerial, pole mounting, wall mounting, direct buried, and duct mounting.

Application:

Fiber optic splice closures are vital components in fiber optic networks, serving as protective housings for spliced fibers and ensuring reliable performance across diverse applications. They are designed to withstand environmental stress, organize fiber management, and provide scalability for future expansions.

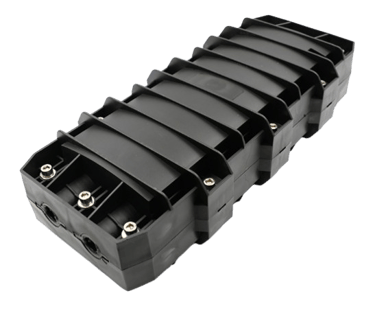

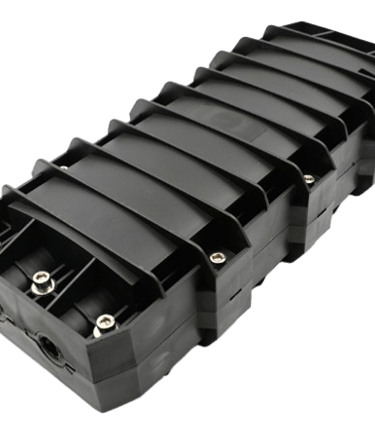

• Available in In-line horizontal and Dome

• Mechanical sealing using gaskets or O-rings

• Heat-shrink sealing systems

• Impact resistance

• Long-term aging behavior

• Made of PC and ABS material

• Integrated with splice cassette and cable management rods

• Compact structure and perfect fiber management

• Suitable for the fusion splice or mechanical splice

• High reliability and reasonable inner space design

• Customer connectors are available upon request

• Singlemode or Multimode

• Fiber Mode: Singlemode or Multimode

• Design type: Smooth transitions from cable entry to splice tray

• Capacity: 24 or 288 fibers

• Splice trays: 12 cores or 24 cores Splice trays

• Installation Models: In-Line or Dome

• Installation Method: Aerial, Duct, Pole-mounted and Wall-mounted

• Material: High-quality PC and ABS material

Mechanical Performance Test compliance:

• Optical Testing: IEC 61300 series

• Generic cabling systems: ISO/IEC 11801

• seals tested for waterproofing (IP68 rating)

• Temperature Performance[°C]: -30 to +60

Operation Performance:

Optional Features:
