Overview:

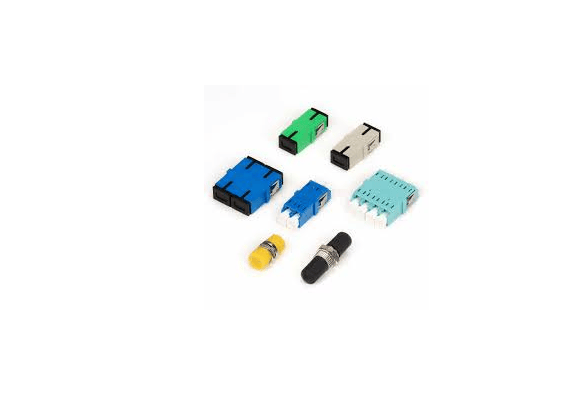

Fiber Optic Adaptors, also named as fiber adapter or fiber coupler, is a special connector designed to mate or connect two ends of a fiber optic cable with high precision. Fiber adapters are widely used in optical distribution frame (ODF), optical fiber communications equipment, measuring appliance and so on. According to the types of fiber optic connectors that fiber adapters are connected, there are common adapters such SC, FC, ST, LC and MTP/MPO adapter etc., also available in Simplex or Duplex and singlemode or multimode.

Fiber optic adapters are small devices used to connect and align two fiber optic connectors, enabling continuous optical signal transmission. They are critical components in fiber optic networks, ensuring low-loss, stable, and reliable connections.

Application:

Fiber Optic Adaptors are used in fiber optic connection; the typical use is to provide a cable-to-cable fiber connection. people sometimes also name them to be mating sleeves and hybrid adapters, mating sleeves means this fiber optic adapter is used to connect the same type fiber optic connectors, while hybrid adapters are the fiber optic adapter types used to connect different kinds of fiber optic connectors.

• Available in Fixed, Sliding or Swing rack mount

• Rack mount 19” 1U for 24 ports and 2U for 48 ports and up to 144 ports in 4U

• Made of powder coated cold rolled steel material

• Integrated with splice cassette and cable management rods

• Compact structure and perfect fiber management

• Suitable for the fusion splice or mechanical splice

• Fiber connector types of FC, SC, ST and LC etc.

• High reliability and reasonable inner space design

• Customer connectors are available upon request

• Singlemode or Multimode

• Simplex or Duplex adaptors

• Fiber Mode: Singlemode or Multimode

• Connector type: SC, FC, ST, LC etc.

• Polish Interface Type: PC, UPC, APC

• Adapter Capacity: 24 or 48 ports, simplex or duplex adaptors

• Splice trays: 2x12 cores or 2x24 cores Splice trays

• Installation Models: Fixed, Sliding or Swing 19” rack mount

• Material: High-quality powder cold rolled steel material

Mechanical Performance Test compliance:

• Optical Testing: IEC 61300 series

• Generic cabling systems: ISO/IEC 11801

• Temperature Performance[°C]: -30 to +60

Operation Performance:

Optional Features:
