Overview:

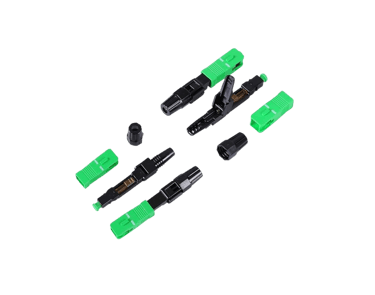

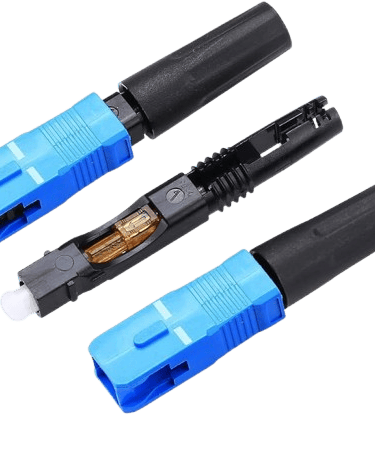

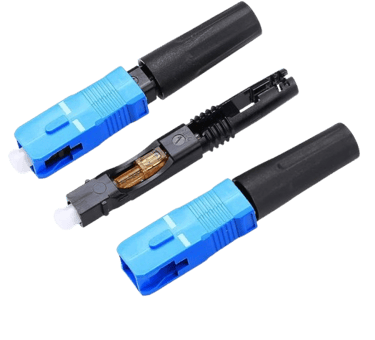

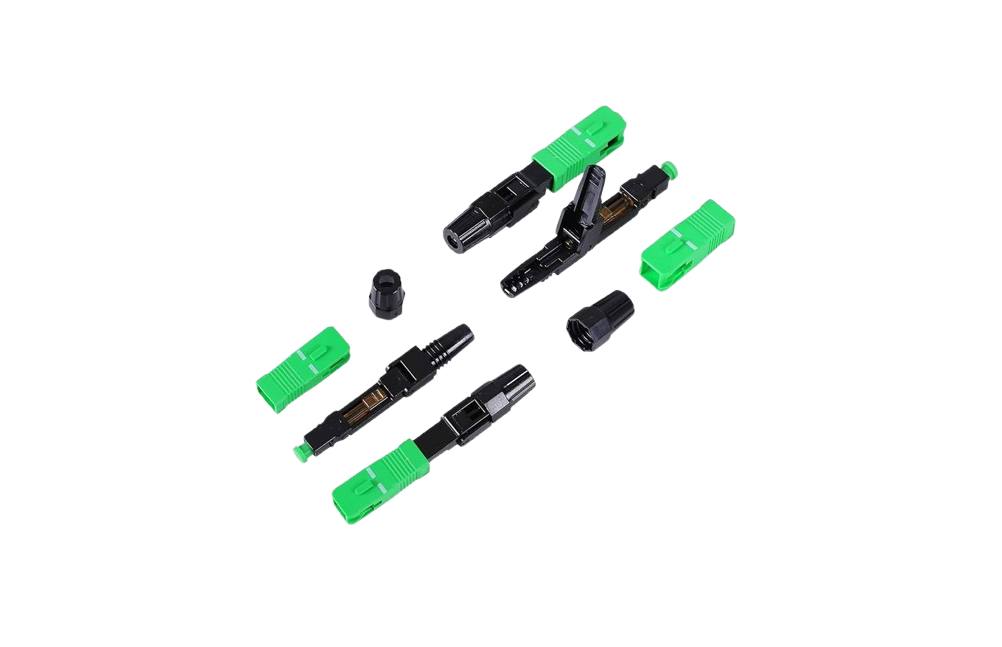

Fast connectors for drop cables and FTTH deployments represent an optimal solution for field installations and rapid fiber optic connections. These connectors are highly valued for their ability to facilitate quick assembly and deliver stable performance in diverse operational environments, addressing the critical need for efficient on-site connectivity.

Engineers conducting fieldwork, including installation, maintenance, repair of optical fiber infrastructure, or FTTH indoor terminations, benefit significantly from their ease of use, as these connectors require no epoxy or polishing, thereby streamlining the termination process. Commonly available in SC, LC, and FC types, and offered in both singlemode and multimode variants, they cater to a wide array of network requirements. Ultimately, fast field connectors provide a highly cost-effective and efficient solution, making them indispensable for modern FTTH projects.

Application:

FTTH Fast Connector for Drop Cable Assembly such as SC, LC or FC Fusion splice on connector is optical fiber fast connector, which used for splicing point inside the connector end, equivalently eliminate the pigtails when splicing. The advantage is no need additional protection after splice, such as splice tray, splice closure, distribution box. In contract to the design of mechanical splice connector, it saves V-groove mechanical connector maintenance and operation cost.

• Smaller diameter

• Excellent environmental properties

• Perfect cable structure with high fiber density

• Network design flexibility

• The outer sheath is a PE layer

• Blown into the microduct from 8mm inner diameter

• Fiber bundle for Uni-loose tube 2 to 12 cores

• Fiber bundle for Multi loose tube (Stranded) 12 to 288 cores

• Fiber bundle diameter: 5.8 – 11.2 mm

• Singlemode or Multimode

• Fiber type G.G652D, G.657A1, G.657A2

• Fiber type is Uni-loose tube 2 to 12 cores

• Fiber type is Multi loose tube (Stranded) 12 to 288 cores

• Low friction surface for maximum installation lengths

• Excellent environmental properties

• Material outer sheath is PE layer

• Maximum Air Pressure (Blowing) 15bar

• Temperature Performance[°C]: -30 to +60

Mechanical Performance Test compliance:

• Tensile Performance: IEC 60794-1-21 Method E1

• Bend: IEC 60794-1-21 Method E11

• Impact: IEC 60794-1-21 Method E4

• Crush: IEC 60794-1-21 Method E3

Operation Performance:

Optional Features:
