Overview:

Category 7A ethernet cables, also called Cat.7A ethernet cables, is a standardized twisted pair cable for Ethernet and other network physical layers, the Cat7A cable standard specifies performance of up to 1000MHz. Some environments are prone to greater-than-normal amounts of interference, so there are cables designed to provide even more protection against interference. The protection is called shielding and foiled.

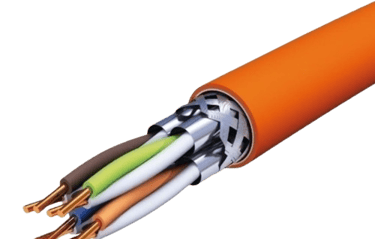

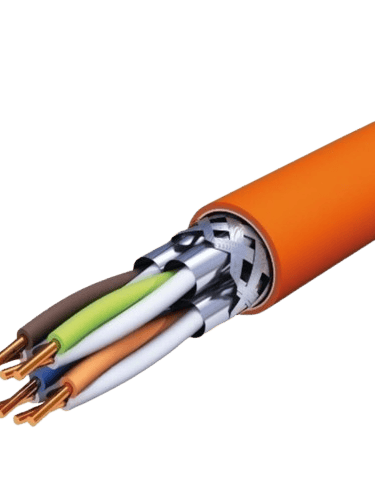

Category 7A LAN cables represent a high-performance solution within copper cabling technology, meticulously engineered for the most demanding network environments. These fully shielded cables are designed to support frequencies up to 1000–1200 MHz, thereby enabling reliable 10 Gigabit Ethernet (10GbE) transmission, robust Power over Ethernet (PoE) functionality, and efficient broadband video delivery. Their superior design and maximum shielding capabilities make them an ideal choice for critical infrastructures such as data centers, expansive enterprise networks, and any location where robust protection against electromagnetic interference is paramount.

Application:

Businesses use Ethernet cabling in office buildings, data centers and users, primary considerations determine ethernet cable to use for your business. Ethernet cables can be classified into different types according to different specifications, unshielded, Foiled and shielded cables in terms of shielding types, and solid copper and stranded copper cable in terms of the copper conductor in pairs.

• Smaller diameter

• Excellent environmental properties

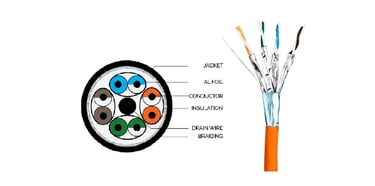

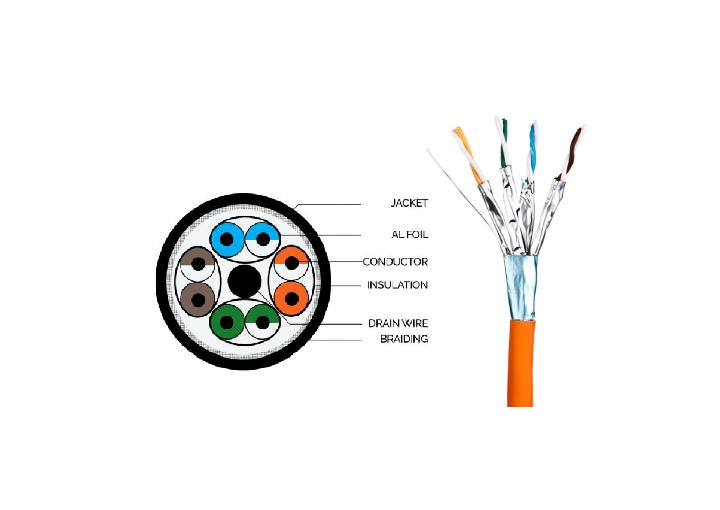

• Perfect cable structure with 4 pairs of wires

• Network design flexibility

• The outer sheath is a PE, PVC and LSZH layer

• Conductor Diameter: 0.59±0.02 Solid Bare Copper

• Outer Cable Diameter: 7.7mm ± 0.2 mm for 23AWG and 8.7mm ± 0.2 mm for 22AWG

• Guaranteed performance to 1000 -1200MHz

• Cable supports 10Base-T, 100Base-T, 1GBase-T, 10GBase-T, 25GBase-T

• Full compliance to latest standards for Category 7A and Class EA

• CAT7A ethernet cable cat7A 4 pairs copper twist wire

• Available in UTP, FTP and STP

• Conductor 22AWG and 23AWG Stranded

• Excellent environmental properties

• Material outer sheath is PE, PVC and LSZH layer

• Meets requirements of IEEE 802.3af, IEEE 802.3at and IEEE 802.3bt for PoE applications

• Temperature Performance[°C]: -30 to +60

Mechanical Performance Test compliance:

• ANSI/TIA/EIA-568.2-D

• ISO/IEC 11801-1 Class F

• IEC 62821-1 and IEC 60754-1

• EN 50173 and EN 50288-4-1

• ANSI/TIA-1096-A (FCC Part 68)

• EN50173-1:2011

• UL, ETL, CE, RoHS

Operation Performance:

Optional Features:
